Weld Mount 1″ Tall Stainless Panel Stud w/0.62″ Base & #8 x 32 Thread – Qty. 15

Description

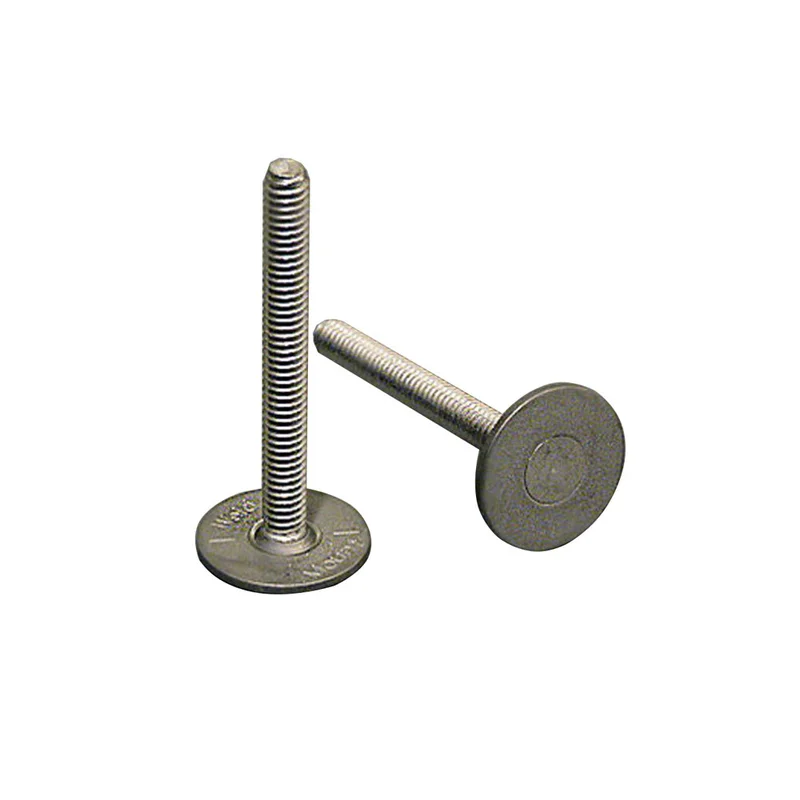

1″ Tall Stainless Stud w/#8 x 32 Thread

Our Small Stainless Steel Panel Studs have a wide range of uses.Originally they were used for mounting on the backside of dash panels for mounting to the console.Now they are used for securing a wide range of wire clamps and other small components to composite surfaces.The base plate is 0.62″ in diameter with a 1″ tall stud.Tensile strength is 300 lbs. and shear strength is 375 lbs.Maximum torque load is 45 inch/lbs.

Manufacturer : Weld Mount

Manufacturer Part No: 83216
